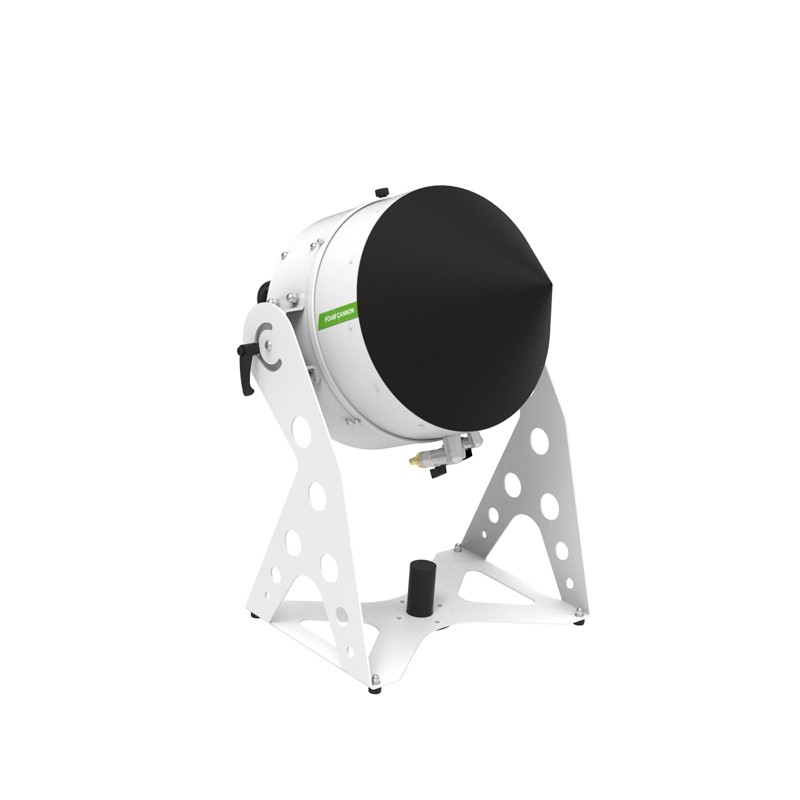

FOAM MACHINE ENERGY FOAMER ONE

Reference: 100WPFM1240

Condition: New

WATERPROOF FOAM GENERATOR - LOW VOLTAGE SUPPLY - USE IN WET ENVIRONMENTS
The FOAMER ONE machine is a standard foam generator ( cascade effect) which operates at low voltage and which benefits a very high level of IP protection. The particularity comes from its fan which is waterproof. The main benefit is that it eliminates the risk of electrocution if the machine is accidentally submerged in water. Thanks to its specific nozzle equipped with a clever venturi system, this machine is able to produce large quantity of foam even with low pressure of water supply. Its design makes it very light and particularly handy. Its installation is very easy, it is also possible to position it on a tripod. Economical machine to use - low consumption of liquid concentrate for high foam production.

More details

Interested in product

More info

MODELE	FOAMER ONE
REFERENCE	100WPFM1241
VOLTAGE	230V ~ 50Hz Ac / 30V Dc
ELECTRIC MOTOR	DC Motor
RPM	4550 / Rpm
POWER REQUIREMENT	600W
LEVEL PROTECTION	IP68
POWER ROCKER SWITCH	16 A
FUSE	12 A
DIMENSION - LENGHT	477,00 mm
DIMENSION - WIDTH	516,00 mm
DIMENSION - HIEIGHT	629,00 mm
WEIGHT	12,5 kg
FAN TECHNOLOGY	Radial fan
AIRFLOW / HOUR	4100m3/Hour
AIR SPEED	12m/sec
SOUND LEVEL	81db
OPERATING MODE	On / Off
DMX CONTROL	/
FOAM PRODUCTION	60m3/mn
FOAM PROJECTION	/
FLUID CONSUMPTION	3L - Liquid RTU/ min
OPERATING TEMPERATURE	5° to 50 °
